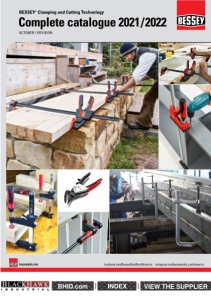

A facebook.com/BesseyToolsNorthAmerica instagram.com/besseytools_northamerica besseytools.com Complete catalogue 2021/2022 BESSEY® Clamping and Cutting Technology OCTOBER 1 REVISION
besseytools.com 1889 1912 1926 1936 1944 1952 1961 1966 1971 1979 1983 1985 1989 2003 2004 2007 2011 2014 2020 About BESSEY® Innovation with tradition In 1889 Max Bessey founded BESSEY & Sohn as a bright steel drawing plant. Since then, BESSEY has continuously expanded the range of products it offers – beginning with the production of manual clamping tools in the mid 1930s. The strength of BESSEY's innovation is underlined by numerous patents. In 1979, with the takeover of Diener shears factory, BESSEY established its cutting technology unit with the already popular Erdi snips. In 2004 BESSEY & Sohn was spun off into BESSEY Tool GmbH & Co. KG, handling clamping and cutting technology, and BESSEY Präzisionsstahl GmbH, a leading German supplier of high-quality bright and stainless steels. This unique positioning of BESSEY as a producer of tools and precision steels ensures significant advantages in terms of quality. It allows BESSEY to procure its rails and spindles directly from the in-house drawing plant, giving it precise knowledge of the steel quality that is going into particular components which are subjected to particular high stresses. This is because bright steels are produced and tested at BESSEY Precision Steel with consistently high quality and the utmost precision in cutting-edge facilities. “To stop improving is to stop being good.” The motto of company founder Max Bessey remains true today, as it will in the future, and is the guiding principle to everything that the company does. Max Bessey founds drawing plant in Stuttgart. Firm continued by nephew Karl Bessey. Company run by Dr. Mayer who significantly expands product range and adds steel grades. Patent granted for a new malleable cast iron screw clamp, beginning BESSEY clamping tool production. Founding of subsidiary to produce clamping tools. Patent granted for a tempered all-steel clamp. Expansion and start of bright steel production. Dr. Mayer is succeeded by his daughter and son who start dynamic phase of development. A further increase in bright steel production with the purchase of Aldinger engineering works. Founding of BESSEY FILS from which BESSEY-SER arose in 1988. Purchase of the Diener shears factory. Consolidation of bright steel production. Expansion and purchase of historic spinning mill. After restoration, tool production begins. BESSEY® celebrates its 100 year jubilee. Purchase of sales partner in the strategically important North American market. Purchase of the GROSS STABIL TOOL clamping tool brand as part of global growth strategy. Integration of GROSS STABIL TOOL to enhance tool production synergies. Klaus Fuchs becomes Managing Partner and the BESSEY Group is once again owner-managed. BESSEY celebrates 125 years. Carsten Spang succeeds Klaus Fuchs as managing director of BESSEY Tool and BESSEY Precision Steel
iii 1.800.828.1004 BESSEY BESSEY BESSEY BESSEY BESSEY We welcome your feedback, and are happy to assist you with your questions. Please call us toll free: ® locations German head offices serving Europe and the world BESSEY Tool GmbH & Co. KG Group are located near Stuttgart, Germany. All production, R&D, along with European admin and sales are located here. The development, manufacture, storage and shipping of clamping and cutting tools takes place a few km north of the main works, in the building of the historic, former Kammgarnspinnerei BietigheimBissingen (spinning mill). North American offices serving Canada and the USA. With offices in both Canada and the USA, the BESSEY Group handles the entire North American market in its capacity as a sales and marketing operation. means Quality Precision and durability are at the core of the BESSEY brand. Our tools have always been manufactured from the highest-grade materials. Precision steel rails and spindles are manufactured in our own drawing plant in Germany. All components are tested by experienced technicians and development engineers using ultramodern process control techniques. means Innovation “To stop improving is to stop being good.” The motto of our company founder Max Bessey remains true today and is the guiding principle of everything we do. New products and product improvements continue to be developed on a long-term basis from innovative ideas. means Variety Thanks to our designers‘ many years of experience and continuous communication with customers, BESSEY has a firm grasp on how to optimize tool ergonomics and efficiency. The result is clamping and cutting tools true to our guiding principle: “BESSEY. Simply better.” With over 1,600 products, BESSEY now offers a tremendously wide and deep range of items customised to special requirements. means Service Reliability, confidence and a sense of responsibility are the backbone of our partnership with the environment and customers. BESSEY has distinguished itself as a serviceoriented company.
iv besseytools.com 1-2 3-5 6 7-10 11-13 14 15-16 17-18 19 20 21-22 23-24 25-26 27-30 31-32 33 34-36 37-40 41-42 43 NEW NOUVEAU NEW NOUVEAU NEW NOUVEAU NEW NOUVEAU Table of contents Premium all-steel bar clamps 660-S, 1200-S Light duty 1800-S Medium duty 2400S Regular duty 4800S Heavy duty 7200S Extra heavy duty 8500HPC Extra high pressure Traditional all-steel bar clamps MMS Light duty SGL Medium duty SQ Regular duty STB Heavy duty GS classiX® - Standard pad GSL, GSM classiX® - Heavy duty pad Service parts for all-steel clamps GearKlamp® bar clamps GK GearKlamp® bar clamps Parallel bar clamp systems and case clamps KRE K Body® REVOlution KREV Vario K Body® REVOlution KREX K Body® REVO™ extender kits KREK K Body® REVO™ framing kits Accessories & service parts KRJR K Body® REVO™ JR UK UniKlamp® case clamp Woodworking clamps and cast jaw bar clamps LMU Light duty, step over LM Light duty, zinc die cast TG & TGJ Light duty series TG Medium duty series TGK Heavy duty series TC TC series with flat rail CDS Deep reach with flat rail TP-1K Grounding clamp Service parts BTB20 Accessory bag Heavy duty steel bar clamps IBEAM Heavy duty IBeam Service parts Specialty all-steel clamps GZ GZ series pivot handle J18 J Series step-over light duty 2400J J Series step-over regular duty 4800J J Series step-over heavy duty DT2400 Regular duty deep throat version CL Claw clamp SG30VAD KombiKlamp™ RSC OMEGA bend clamps Double force all-steel variable clamps SLV, GSV Variable high-performance set Rails and sliding arms Service parts and accessory Rapid-Action lever clamps LC, 1800L Lever clamps GSH classiX® Light duty lever clamp KLI KliKlamp® Clamping angles and miters WSM Angle clamp WS Angle clamps WS Corner clamp Pipe clamps PC-2 Pipe clamp, traditional style PC-DR Deep reach pipe clamp, traditional style BPC Pipe clamp, H style Service parts Spring clamps XV5-100 VarioClippix® variable spring clamps XV5-170 V arioClippix® variable spring clamp, double jaw XCL Clippix® needle nose plastic spring clamps XC Clippix® premium plastic spring clamps XCRG Clippix® ratcheting spring clamps XM Steel spring clamps One-handed clamps EHK EHK Trigger clamp RES EHK Trigger clamp sets EZR-SET One-handed clamps EZS & EZ One-handed clamps DUO DuoKlamp® one-handed clamp PG PowerGrip one-handed clamp Auto-Adjust toggle clamps STC-VH Vertical toggle clamp STC-IHH, STC-IHA Inline toggle clamps STC-HH, STC-HV, STC-HA Horizontal toggle clamp Service parts Workbench adapter (toggle clamps) STC-SET-T20 Accessory for multifunction (MFT) table Hold down products and specialty clamps Model L RiteHite long reach Model S RiteHite standard reach BSN,HD,BSG Hold down table clamps FC Jig & fixture clamp Welding table clamps TWV Variable throat depth TW Fixed throat depth TWM28 With special pressure plate TW28GRS Welding table clamp TWVAD Welding table clamp accessories TWA-STC Welding table clamp adapter TWX Welding table clamp extension TW28AV Welding table clamp tilting adapter Service parts, MorPads Clutch style bar clamps GSCC Clutch style GSCC4PK-C Clutch style clamshell 4/set BTB Clutch style clamshell 16/set BGP Woodworking set 15/set DHBC Clutch style with double jaw Strap clamps VAS Variable angle VAS400 Variable angle VAC Vario corner clips E NEW NEW NEW
v 1.800.828.1004 44-46 47 48 49 50 51 52 53 54-56 57-61 62-63 64-71 72 72 73-78 79-80 81-82 NEW NOUVEAU NEW NOUVEAU A-Z We welcome your feedback, and are happy to assist you with your questions. Please call us toll free: C-clamps HS series Heavy service, fully closing 100 series Heavy duty CDF Regular duty CDFCHV Regular duty, copper spindle, Hi-Vis 540 series Ductile alloy CM Light duty QRCC Quick release DHCC Double head CP-F Grounding Grip pliers SG SuperGrips™ withprofiled rail SG-PC SuperGrips™ pipe clamp SG-DR SuperGrips™ deep reach clamp Edge clamps EKT Edge clamp, one hand KF Edge clamp B-EC3 3-way edge clamp, light duty KT5 Spindle clamps Service parts Seaming tools PS55 Solid surface seaming tool PS130 Extra large solid surface seaming tool Cabinetry clamp, face frames BES8511 Service parts Track / table clamps GTR Wood handle GTRH Lever handle Flooring tools AV2 Flooring spacer SVH Flooring strap clamps Other clamps S-10 Portable mini-vise TK Table mount clamp HS Wood handscrew clamps KFP Panel carrier Vises BV-DF Industrial bench vise BV-MPV5 Multi-purpose vise BV-HD Heavy duty workshop vises BV-HW45 Light duty workshop vise BV-DP40 Drill press vise BV-C030 Clamp-on vise BV-VB Vacuum base vise BV-NVJ Multi-purpose vise jaws BV-WV65 Wood vise Service parts Bearing heaters PV Portable, digital temperature control SBH Touch screen, digital temperature control SVH Fast Action, bench, digital temperature control SVH Portable, medium duty, digital temperature control MP Magnetic temperature probe BH/SVH,PV,PVH Cross bars for bearing heaters SC,BC,BCS Induction bearing heaters RB Raising blocks SC,BC,BCS Cross bars for bearing heaters GCS Cone style bearing heaters – non-induction Industrial magnets WMS-1, 3, 5 Magnetic squares WMS-4 Double magnetic square WMS-6 Multi-angle square WMS-7 Arrowhead magnetic square CMS “Chunky” magnetic square BDMS “Big Daddy” magnetic square MGC Magnetic ground clamps MPU Mag Pick-Up MS MagStick MW MagWand MSP MagSweep Snips & knives D39ASS Multi-use aviation snip D15A Multi-use aviation snip, compact D16 Aviation snips D29ASS-2 Offset snips, optimized D27AH-BE Offset, extra hard, high tolerance D22A Long-nose, multi-purpose D123-SB Safety strap cutter D47, D48 MultiSnip - Straight D48A MultiSnip - Offset D49 Cable cutter D50 Combinox D51A MultiSnip master DBST Multi-function tool D-BKPH Folding utility knife - ABS comfort grip DBKPH Folding utility knife set - ABS comfort grip D-BKWH Folding utility knife - Wood handle D-BKAH Folding utility knife - Aluminum handle Industrial fluids & compounds OPT Relton OPTION 1® cutting fluid A9 Relton A-9® aluminum cutting fluid RT Relton Rapid Tap® cutting fluid Torque multipliers JM Torque multipliers Index STC charts Resources Cautions & warnings Terms and conditions - distributor Warranty policy, return procedures, Calprop statement History of James Morton Connect with BESSEY® NEW NEW
1 besseytools.com A B 1 2 3 4 5 A Light duty clamps, 660-S and 1200-S series The light duty all-steel clamps come with BESSEY's patented rail profile, force optimized drop forged arm and a standard replaceable pad. Made in Germany. Clamping Capacity Throat Depth Clamping Force Approx. Weight 660-S8 8" 4" 726 lbs 2.05 lbs 660-S12 12" 4" 726 lbs 2.35 lbs 660-S18 18" 4" 726 lbs 2.90 lbs 1200-S8 8" 5 1⁄2" 1320 lbs 3.75 lbs 1200-S12 12" 5 1⁄2" 1320 lbs 4.20 lbs 1200-S18 18" 4 3⁄4" 1320 lbs 4.85 lbs 1200-S24 24" 4 3⁄4" 1320 lbs 5.30 lbs B Medium duty clamps, 1800-S series The medium duty all-steel clamps come with BESSEY’s grip handle, patented rail profile, force optimized drop forged arm and the MorPad. Made in Germany. Clamping Capacity Throat Depth Clamping Force Approx. Weight 1800-S8 8" 4 3⁄4" 1980 lbs 4.00 lbs 1800-S12 12" 4 3⁄4" 1980 lbs 4.40 lbs 1800-S18 18" 4 3⁄4" 1980 lbs 5.30 lbs 1800-S24 24" 4 3⁄4" 1980 lbs 6.30 lbs Bar clamps for industrial application Premium all-steel bar clamps Premium all-steel bar clamps from BESSEY® represent the peak of the all-steel bar clamp category. Made in Germany, this series delivers uncompromising quality, patented features, durability and real-world productivity to make it a must-have tool in today’s modern workshop. 1 Patented rail profile For greater stability, enhanced clamping force and 20% more clamping force per spindle turn for quicker set-up times (660, 1200, 1800 and 2400 series). 2 BESSEY MorPad Designed to reduce friction at the point of contact, increasing and optimizing clamping force. Using BESSEY product with the MorPad extends tool life and, at full clamping potential. 3 Hardened spindle Heat-treated, high carbon Acme threaded spindle manufactured for high load capacity, durability and spatter resistance. 4 Size engineered T-Bar Ergonomic, high-strength sliding pin T-Bar. BESSEY Grip comes standard with 1800-S/2400S. 5 Drop forged sliding arm U-shaped sliding arm transfers clamping force evenly across the surface of the forged piece improving power transmission and stability for a longer lasting tool.
2 1.800.828.1004 C D E F We welcome your feedback, and are happy to assist you with your questions. Please call us toll free: C Regular duty clamps, 2400S series BESSEY®’s regular duty all-steel clamps are best sellers. They come with BESSEY's grip handle, patented rail profile, force optimized drop forged arm and the MorPad. Made in Germany. Clamping Capacity Throat Depth Clamping Force Approx. Weight 2400S-8 8" 5 1⁄2" 2800 lbs 6.45 lbs 2400S-12 12" 5 1⁄2" 2800 lbs 6.80 lbs 2400S-16 16" 5 1⁄2" 2800 lbs 7.40 lbs 2400S-20 20" 5 1⁄2" 2800 lbs 8.10 lbs 2400S-24 24" 5 1⁄2" 2800 lbs 8.80 lbs 2400S-36 36" 5 1⁄2" 2800 lbs 11.40 lbs 2400S-48 48" 5 1⁄2" 2800 lbs 12.30 lbs 2400S-60 60" 5 1⁄2" 2800 lbs 14.25 lbs Clamping Capacity Throat Depth Clamping Force Approx. Weight 4800S-12 12" 7" 4880 lbs 12.40 lbs 4800S-18 18" 7" 4880 lbs 14.70 lbs 4800S-24 24" 7" 4880 lbs 16.20 lbs 4800S-36 36" 7" 4880 lbs 20.75 lbs 4800S-48 48" 7" 4880 lbs 23.85 lbs 4800S-60 60" 7" 4880 lbs 26.90 lbs Clamping Capacity Throat Depth Clamping Force Approx. Weight 7200S-12 12" 8" 7770 lbs 23.10 lbs 7200S-18 18" 8" 7770 lbs 26.85 lbs 7200S-36 36" 8" 7770 lbs 36.45 lbs Clamping Capacity Throat Depth Clamping Force Approx. Weight 8500HPC-14 14" 4" 8500 lbs 11.65 lbs F Extra high pressure clamps, 8500 series This clamp has a narrower throat depth which enables a much higher clamping force than a comparably sized clamp with a larger throat depth. Comes with: Standard rail profile, MorPad. E Extra heavy duty clamps, 7200S series ‘Robust’ would hardly begin to describe these highly capable (and unique to BESSEY®) clamps which are designed for extra heavy industrial applications. The spindle has a 36 mm hexagonal head to assist in tightening (torque of 100 Nm or less). Comes with: Standard rail profile, specially designed MorPad. D Heavy duty clamps, 4800S series The heavy duty all-steel clamps are perennial favorities for their strength and durability. They come with standard rail profile and the MorPad. Made in Germany.
3 besseytools.com A B 1 2 3 4 Bar clamps for industrial application Traditional all-steel bar clamps Made in Germany, the Traditional series of clamps offers a unique value proposition to the professional. Its midrange pricing offers the highest quality, robust construction and a traditional rail profile but, does not include the enhanced rail and drop forged arm that is offered with the premium all-steel bar clamp offering. A Light duty, MMS series Sometimes the right tool has nothing to do with size. The MMS clamps are easy to use, quick to adjust and offer great value. At 400 lbs of clamping force they offer a high level of performance. Comes with standard rail profile, standard crimped on swivel pads. 1 Traditional rail profile The rail profile offers great stability, reliable clamping force and consistent clamping force per spindle turn. 2 Standard pads and heavy duty pads The standard swivel pads and heavy duty pads are proven contact surfaces for the traditional clamps. 3 Hardened spindle The heat-treated, high carbon Acme threaded spindle offers high load capacity, durability and spatter resistance. 4 Size engineered T-Bar The high-strength sliding pin T-Bar is sized according to the clamp’s capability. Clamping Capacity Throat Depth Clamping Force Approx. Weight MMS-4 4" 2 1⁄4" 400 lbs 0.60 lbs MMS-8 8" 2 1⁄4" 400 lbs 0.75 lbs MMS-12 12" 2 1⁄4" 400 lbs 0.85 lbs B Medium duty all-steel bar clamp, SGL series The standard profile rail and heavy duty pad of this series make it one of the best all-steel bar clamps in the world. Produced in Germany from cold-drawn German steel – like the rest of the Premium and Traditional series. Includes standard rail profile, heavy duty pad. Clamping Capacity Throat Depth Clamping Force Approx. Weight SGL-8 8" 4 3⁄4" 1800 lbs 4.00 lbs SGL-12 12" 4 3⁄4" 1800 lbs 4.75 lbs SGL-18 18" 4 3⁄4" 1800 lbs 5.85 lbs SGL-24 24" 4 3⁄4" 1800 lbs 6.35 lbs
4 1.800.828.1004 C D E F G We welcome your feedback, and are happy to assist you with your questions. Please call us toll free: C Regular duty all-steel bar clamp, SQ series The standard profiled rail and heavy duty pad make this series one of the best all-steel bar clamps in the world. Produced in Germany from cold-drawn German steel. Includes standard rail profile, heavy duty pad. D Heavy duty all-steel bar clamp, STB series German produced classic profiled rails, hardened spindles (with 19 mm hex head) and sizes up to 36" makes this a real-world solution for heavy duty applications on a tighter budget. Comes with standard rail profile, crimped on swivel pad. Clamping Capacity Throat Depth Clamping Force Approx. Weight SQ-4* 6" 4 3⁄4" 1330 lbs 2.35 lbs SQ-8 8" 5 1⁄2" 2660 lbs 6.00 lbs SQ-12 12" 5 1⁄2" 2660 lbs 6.70 lbs SQ-16 16" 5 1⁄2" 2660 lbs 7.40 lbs SQ-20 20" 5 1⁄2" 2660 lbs 8.10 lbs SQ-24 24" 5 1⁄2" 2660 lbs 8.75 lbs Clamping Capacity Throat Depth Clamping Force Approx. Weight STB-12 12" 7" 4880 lbs 12.20 lbs STB-18 18" 7" 4880 lbs 14.70 lbs STB-24 24" 7" 4880 lbs 16.00 lbs STB-36 36" 7" 4880 lbs 20.60 lbs *SQ-4 has a standard pad. E classiX® light duty, GS series A range of clamp sizes and performance characteristics with a field replaceable contact standard pad (see page 5). G classiX® - regular duty, GSM series With even more clamping force, heavy duty pad and classic rail profile, plus a range of clamp openings that will meet most day to day needs. F classiX® - medium duty, GSL series Designed for heavier applications, the classiX® line with heavy duty pads comes with classic rail profiles and a range of clamp openings that will meet most day to day needs. Clamping Capacity Throat Depth Clamping Force Approx. Weight GS12-8K 4" 3 1⁄8" 550 lbs 1.00 lbs GS16K 6" 3 1⁄8" 550 lbs 1.05 lbs GS20K 8" 4" 880 lbs 1.90 lbs GS16-12K 6" 4 3⁄4" 1000 lbs 2.35 lbs GS25K 10" 4 3⁄4" 1000 lbs 2.65 lbs GS30K 12" 5 1⁄2" 1200 lbs 3.95 lbs GS60K 24" 4 3⁄4" 1200 lbs 5.25 lbs Clamping Capacity Throat Depth Clamping Force Approx. Weight GSM20 7 1⁄2" 4 3⁄4" 2660 lbs 5.20 lbs GSM25 9" 5 1⁄2" 2660 lbs 5.75 lbs GSM30 12" 5 1⁄2" 2660 lbs 6.35 lbs GSM40 16" 5 1⁄2" 2660 lbs 6.70 lbs GSM50 20" 5 1⁄2" 2660 lbs 7.40 lbs GSM60 24" 5 1⁄2" 2660 lbs 8.10 lbs Clamping Capacity Throat Depth Clamping Force Approx. Weight GSL30 12" 4 3⁄4" 1880 lbs 5.00 lbs GSL60 24" 4 3⁄4" 1880 lbs 6.30 lbs
5 besseytools.com A B C D E F G H Spare parts for all-steel clamps A MorPad Heavy duty pad 3100736 12/18/24/4800, SGL, SQ, STB, GSL and GSM 3101192 Rough face -12/18/24/4800, SGL, SQ, GSL and GSM 3101193 V Groove - 12/18/24/4800, SGL, SQ, GSL and GSM 3100737 7200S B Standard pad 3101339 MMS (4 pc) (must be crimped on) 3101180 GS16K, GS12-8K (4 pc) 3101183 R SC-8, 660S, J18, GS16-12K, GS25K, GS20K, SQ-4 (4 pc), TW/V16, GZ Pivot handle 3101188 1 200, RSC-12, 18 & 24, SQ, SG30VAD, GS30K (4 pc), GS60K, TW/V28 C Grip handles 3006727 RSC-8, 660S, SQ-4 3006786 RSC-12, 18 & 24, 1200, 1800-S, 2400S, SQ, SGL, SG30VAD D Complete spindle assembly 3100398 1200/1800, SGL screw spindle (.700" Dia.) 3100399 2400, SQ, GSL, GSM spindle (.775" Dia.) 3100400 4800/8500, STB spindle (.850" Dia.) 3100401 7200 Spindle (.925 Dia.) E Spindle/handle assembly 3101795 GS20K, RSC-8 3101796 GS16-12K, GS25K, 660S, J18, SQ-4 3101797 GS30K, 1200S, RSC-12/18/24, GS60K, SGL F Sliding arm complete Compatible with Standard Pad Throat Depth 3101441 660 Series * 4" 3101447 1200 Series (5 1⁄2" throat) * 5 1⁄2" 3101450 1200 Series (4 3⁄4" throat) * 4 3⁄4" 3101521 1800S Series 4 3⁄4" 3101407 2400S Series 5 1⁄2" 3101330 2400J-12 , GSM and SQ Series 5 1⁄2" 3101331 DT2400 Series 8" 3101332 STB and 4800 Series 7" 3101798 7200S Series 8" 3101882 8500HPC Series 4" 3101800 GS20K, RSC-8 * 4" 3101801 SQ-4, J18, GS25K, GS16-12K * 4 3⁄4" 3101802 1200S-12, GS30K, RSC-12 * 5 1⁄2" 3101803 1200S-8, GS60K, RSC-18/24 * 4 3⁄4" 3101804 SGL, GSL * 4 3⁄4" *Includes standard pad. G Variable angle device VAD Fits up to 2400 series, SQ H Wedges 3101788 For 7200S 3005122 For 8500HPC 3100579 Nut and lock ring, 7200S
6 1.800.828.1004 A B 1 2 5 5 1 A A 2 We welcome your feedback, and are happy to assist you with your questions. Please call us toll free: GearKlamp® bar clamps A GearKlamp® bar clamps, GK series The first of it’s kind provides a unique clamping solution for difficult set-ups in tight spaces. Quick-shift button on the arm for broad movements of the operating jaw. Once the operating jaw is in position the “around-the-rail” handle is twisted clockwise to tighten the clamp. To loosen the clamp, twist the clamp handle counterclockwise. Clamping Capacity Throat Depth Clamping Force Approx. Weight GK15 6" 2 3/8" 450 lbs 1.36 lbs GK30 12" 2 3/8" 450 lbs 1.60 lbs GK45 18" 2 3/8" 450 lbs 1.85 lbs GK60 24" 2 3/8" 450 lbs 2.09 lbs 3101840 Replacement pad set A unique twist on clamping. Find out how this product can simplify tricky clamping applications. 1 Intelligent design The first clamp of it's kind easily reaches places that were once difficult or impossible to access. Patented mechanism separates spindle from handle for greater clearance. The unique mechanism allows the handle to be offset from the point of contact. This creates the possibility of reaching “into” confined spaces to achieve clamping solutions. Fully enclosed mechanism is protected from dust and debris. 2 Easy to use Quick adjust button for big movements on the bar. Quick turn handle for comfortable, strong clamping. 3 Ideal for clamping operations... In a cramped location. Up against another object. Reaching into or across somewhere to clamp. 4 BESSEY Strength Tempered steel, profiled rail for durability. Secure clamping force up to 450 lbs. Durable construction using fiberglass reinforced polyamide housing. 5 Protective caps over grooved grip Removeable pad reveals a grooved section to clamp oddly shaped objects. Protective caps are provided to prevent marring of wood.
7 besseytools.com A B A R EVOLUTION Powerful parallel clamping at its best K Body® REVO™ A K Body® REVOlution, KRE The BESSEY fixed jaw parallel clamps are class-leading examples of BESSEY’s commitment to continuous improvement. Powerful 90 degree (nominal), no-slip clamping rated at a nominal 1700 lbs of everyday clamping force. This clamp can be quickly and easily set up for clamping or spreading without the use of secondary tools. Ideal for precision cabinetry, heavy duty laminations and robust general clamping. Ships as a 2-pack. MORE than a clamp... part of a comprehensive clamping concept. REVO and Vario REVO are made even more versatile with innovative accessories (see page 9). The best parallel clamp in the world with the features you want! Clamping Capacity Throat Depth Clamping Force Approx. Weight Spreading Capacity KRE3512 12" 3 3⁄4" 1700 lbs 4.76 lbs 10 ½" – 15 5⁄ 16" KRE3518 18" 3 3⁄4" 1700 lbs 5.40 lbs 10 ½" – 21 ½" KRE3524 24" 3 3⁄4" 1700 lbs 6.06 lbs 10 ½" – 28 ¾" KRE3531 31" 3 3⁄4" 1700 lbs 6.86 lbs 10 ½" – 36 ½" KRE3540 40" 3 3⁄4" 1700 lbs 7.61 lbs 10 ½" – 44 ½" KRE3550 50" 3 3⁄4" 1700 lbs 8.51 lbs 10 ½" – 52 ½" KRE3560 60" 3 3⁄4" 1700 lbs 9.46 lbs 10 ½" – 63 3⁄ 8" KRE3582 82" 3 3⁄4" 1700 lbs 11.66 lbs 10 ½" – 81 7⁄ 8" KRE3598 98" 3 3⁄4" 1700 lbs 13.21 lbs 10 ½" – 101 ½" Parallel bar clamp
8 1.800.828.1004 B We welcome your feedback, and are happy to assist you with your questions. Please call us toll free: Cold drawn steel rail bar ■■ Produced and tested at BESSEY‘s own mills with consistently high quality and the utmost precision in cutting-edge facilities. Large clamping surfaces ■■ Clamping surfaces are perpendicular to the rail. ■■ Three removable pressure caps that are repellent to glue, and resistant to paint and grease solvents. ■■ Large surface areas distribute high clamping force evenly. Powerful with simple set up and operation ■■ Secure clamping force up to 1700 lbs. ■■ Operating jaw stays where you put it for easy set up. Positionwhere you like and apply clamping force. B Vario K Body® REVOlution, KREV Clamping System The BESSEY Vario version has all the same great features as the K Body REVOlution …PLUS…the ”fixed” jaw can be moved along the bar. This subtle difference allows for a whole range of gamechanging applications. Make the clamp longer by connecting them with a KBX20 accessory, add an operating jaw (KRE-J2K) or fixed jaw accessory (KRE-VO) and tackle multiple clamping jobs at the same time. You can add angle adaptors (KR-AS) for tapered parts or, attach the clamping system to a table top for more stability using the TK-6. Imagine the possibilities! MORE than a clamp... part of a comprehensive clamping concept. REVO and Vario REVO are made even more versatile with these innovative accessories (see page 9). The BESSEY parallel clamp has been a trusted fixture in many shops for decades because of its reliability and quality. Each successive generation of K Body builds upon the previous generation’s strengths and the REVOlution is no different! With secure clamping up to 1700 lbs, the new K Body REVOlution (KRE) is designed to clamp at a nominal 90 degrees to the rail with large clamping surfaces. The ergonomic two part handle includes a steel socket that allows one to apply clamping force using a hex key. While this helpful feature was designed for ease of clamping, it does allow one to provide more clamping force and is particularly helpful for those with wrist strength issues. The operating jaw has undergone some evolutionary changes as well. Position it where you want and start clamping. The easy set up allows one to position the operating jaw where you want and, it will stay put during set up. Three removable pressure caps allow for easy cleaning and, the two work piece supports prevent the work piece from contacting the rail. A removable end clip allows tool-free set-up for spreading. Precise and gentle ■■ Workpieces with sensitive surfaces can be clamped and spread, parallel to each other. ■■ Workpiece supports also prevent the workpiece from coming into contact with the rail. Well thought out ■■ Ergonomically formed 2-component handle with steel socket for applying force with a hex key or driver when desired (max. torque 17 Nm). Vario K Body ■■ Vario K Body offers a unique moveable “fixed” jaw. This allows more effective balance of workpieces during set-up, and enables custom clamping set up. Clamping Capacity Throat Depth Clamping Force Approx. Weight Spreading Capacity KREV40 40" 3 3⁄4" 1700 lbs 8.48 lbs 10 ½" – 44" KREV60 60" 3 3⁄4" 1700 lbs 9.35 lbs 10 ½" – 63" KREV78 78" 3 3⁄4" 1700 lbs 11.66 lbs 10 ½" – 81" KREV98 98" 3 3⁄4" 1700 lbs 13.86 lbs 10 ½" – 101"
9 besseytools.com K C D E H I A B J MORE than a clamp... part of a comprehensive clamping concept. REVO and Vario REVO are made even more versatile with these innovative accessories. A K Body® REVO™ extender kits 24"/40" set, or 24"/50" set. B K Body® REVO™ framing kits 24"/40" set, or 24"/50" set. C K Body tilting adapter KR-AS Soft faced tilting pads attach to the clamping jaws. Adjustable within a tilting range of -15 or +15. Ideal for glue-ups that are not 90 degrees. Soft, gripping surfaces, bevelled surface. 2/set. D K Body framing set KP Set of four 90 degrees clamping blocks for framing work. The clamping pressure can be set separately for each corner. Ideal for pictures, drawers and doors. 4/set. E K Body extender KBX20 Two becomes one: with the easy-to-use extension made of sturdy aluminum the clamping width can be increased by joining two clamps. 1/set. Suitable for all K Body REVO versions. F K Body variable jaw KRE-VO Suitable for all BESSEY K Body REVO parallel clamps KREV, KRE, KRV and KR. Add an extra one for multiple set-ups. G K Body operating jaw, KRE-J2K Suitable for all BESSEY K Body REVO parallel clamps KREV, KRE, KRV and KR. Add an extra operating jaw for multiple glue ups. H Table clamp TK-6 For KR, KRV, KRE and KREV. Securely attaches the clamp to the work surface. For creating a more “fixed” clamping system. 2/set. I K Body jaw pads, KR-JP For KR, KRV, KRE and KREV. Replacement jaw pads, 2 jaw pads/set. J K Body rail protection pieces, KRE-RPP For KR, KRV, KRE andKREV. Replacement rail protection pieces, 2/set. K K Body end clip, KRE-EC For KR, KRV, KRE and KREV. Replacement rail end, 1/set. Includes Approx.Weight KREX2440 2 x KRE3524 (24" K Body REVO) 2 x KRE3540 (40" K Body REVO) 2 x KBX20 (K Body extenders) 30.00 lbs KREX2450 2 x KRE3524 (24" K Body REVO) 2 x KRE3550 (50" K Body REVO) 2 x KBX20 (K Body extenders) 32.00 lbs Powerful parallel clamping at its best Parallel bar clamp Includes Approx.Weight KREK2440 2 x KRE3524 (24" K Body REVO) 2 x KRE3540 (40" K Body REVO) 1 set KP blocks (4 blocks/set) 29.00 lbs KREK2450 2 x KRE3524 (24" K Body REVO) 2 x KRE3550 (50" K Body REVO) 1 set KP blocks (4 blocks/set) 31.00 lbs
10 1.800.828.1004 A B 1 2 3 4 JR JR facebook.com/BesseyToolsNorthAmerica We welcome your feedback, and are happy to assist you with your questions. Please call us toll free: BESSEY® continues innovating to meet the needs of the serious woodworker. For production settings or home shops, there is always a need for a powerful, parallel, BESSEY product. 1 Parallel clamping surface with jaw protection pads Three large removable (for cleaning or replacement) pressure caps are resistant to glue, paint and solvents. 2 Wood handle Ergonomically shaped. 3 Rail protection pieces Pieces work to isolate and elevate the workpiece from the rail. 4 Removable end-clip End-clip ensures clamp sits parallel to work surface. Removable to reverse sliding arm for use as spreader. A K Body® REVO™ parallel clamps The new K Body® REVO™ is a mid-sized version of what makes the full-sized REVO parallel clamp so great. Parallel jaws, good power and a lighter relative weight, combined with a very competitive price point. B UniKlamp® case clamp This light duty universal case clamp is an ideal tool for many jobs around the shop. Clamping pressures are spread over a wider surface area and are gentle on delicate work surfaces. The light weight means less fatigue during glue-ups. Removable end clip for conversion to a spreader. Clamping Capacity Throat Depth Clamping Force Approx. Weight KRJR-12 12" 3 1⁄4" 900 lbs 2.86 lbs KRJR-18 18" 3 1⁄4" 900 lbs 3.16 lbs KRJR-24 24" 3 1⁄4" 900 lbs 3.40 lbs KRJR-36 36" 3 1⁄4" 900 lbs 4.21 lbs KRJR-50 50" 3 1⁄4" 900 lbs 4.91 lbs Clamping Capacity Throat Depth Clamping Force Approx. Weight UK3.006 6" 3 1⁄8" 330 lbs 1.36 lbs UK3.012 12" 3 1⁄8" 330 lbs 1.59 lbs UK3.024 24" 3 1⁄8" 330 lbs 2.04 lbs Connect with us Powerful parallel clamping at its best Parallel and case clamps
11 besseytools.com A B 3 5 4 2 1 Woodworking clamps and cast jaw bar clamps BESSEY® quality, durability and strength The original BESSEY® malleable cast iron bar clamp is available in two designs. Either with the tried-and-true wooden handle, or the modern BESSEY 2K handle. The high quality 2K composite handle with comfort insert allows you to complete tasks more effectively and with less hand fatigue. B Light duty TGJ, with wood handle Hourglass rail profile resists flex. A tough tool built with the quality you expect from BESSEY. Includes tried-and-true wooden handle. Clamping Capacity Throat Depth Clamping Force Approx. Weight TGJ2.506 6" 2 1⁄2" 600 lbs 1.45 lbs TGJ2.512 12" 2 1⁄2" 600 lbs 1.80 lbs TGJ2.518 18" 2 1⁄2" 600 lbs 2.15 lbs TGJ2.524 24" 2 1⁄2" 600 lbs 2.50 lbs TGJ2.530 30" 2 1⁄2" 600 lbs 2.90 lbs TGJ2.536 36" 2 1⁄2" 600 lbs 3.25 lbs A Light duty, zinc die cast bar clamp, LM series Small, light weight and made of quality durable material. Clamping Capacity Throat Depth Clamping Force Approx. Weight Step-over U shape clamps over small obstructions and apply the clamping force where you need it. Comes with two plastic pressure caps LMU2.004 4" 2" 330 lbs 0.50 lbs LMU2.006 6" 2" 330 lbs 0.60 lbs LMU2.008 8" 2" 330 lbs 0.65 lbs Zinc die cast clamping arms are powder coated to prevent chemical corrosion. Comes with a plastic cap on pressure pad LM2.004 4" 2" 330 lbs 0.55 lbs LM2.006 6" 2" 330 lbs 0.60 lbs LM2.008 8" 2" 330 lbs 0.70 lbs LM2.012 12" 2" 330 lbs 0.80 lbs 1 Integrated anti-slip system Maximum safety is available with the integrated anti-slip system. A set screw is molded into the sliding arm and interlocks with the serration on the rail. 2 R einforced jaw and sliding arm Corrugated malleable cast iron fixed jaw and sliding arm generate powerful, rigid clamping. 3 High quality profiled rail The BESSEY profiled rail from our own German steel plant has been optimized for clamps. The profile acts against torsional forces. 4 BESSEY smooth running spindle Smooth running spindle with Acme thread allows for more clamping with less effort. Replaceable pressure plates. 5 BESSEY comfort handle The TG series offers both the tried-and-true wooden handle or 2K composite handle with comfort insert.
12 1.800.828.1004 C D We welcome your feedback, and are happy to assist you with your questions. Please call us toll free: Clamping Capacity Throat Depth Clamping Force Approx. Weight Light duty TGJ2.506+2K 6" 2 1⁄2" 600 lbs 1.45 lbs TGJ2.512+2K 12" 2 1⁄2" 600 lbs 1.80 lbs TGJ2.518+2K 18" 2 1⁄2" 600 lbs 2.15 lbs TGJ2.524+2K 24" 2 1⁄2" 600 lbs 2.50 lbs TGJ2.530+2K 30" 2 1⁄2" 600 lbs 2.90 lbs TGJ2.536+2K 36" 2 1⁄2" 600 lbs 3.25 lbs TG4.008+2K 8" 4" 880 lbs 2.35 lbs TG4.012+2K 12" 4" 880 lbs 2.62 lbs TG4.016+2K 16" 4" 880 lbs 2.90 lbs TG4.024+2K 24" 4" 880 lbs 3.48 lbs Medium duty TG4.512+2K 12" 4 1⁄2" 1000 lbs 3.55 lbs TG4.518+2K 18" 4 1⁄2" 1000 lbs 4.30 lbs TG4.524+2K 24" 4 1⁄2" 1000 lbs 4.65 lbs TG4.530+2K 30" 4 1⁄2" 1000 lbs 5.40 lbs TG4.540+2K 40" 4 1⁄2" 1000 lbs 6.23 lbs TG5.512+2K 12" 5 1⁄2" 1320 lbs 4.85 lbs TG5.518+2K 18" 5 1⁄2" 1320 lbs 5.80 lbs TG5.524+2K 24" 5 1⁄2" 1320 lbs 6.25 lbs TG7.016+2K 16" 7" 1320 lbs 5.95 lbs TG7.024+2K 24" 7" 1320 lbs 7.00 lbs TG7.048+2K 48" 7" 1320 lbs 9.65 lbs Heavy duty TGK4.516+2K 16" 4 1⁄2" 1540 lbs 5.80 lbs TGK4.524+2K 24" 4 1⁄2" 1540 lbs 6.75 lbs TGK4.540+2K 40" 4 1⁄2" 1540 lbs 9.05 lbs TGK4.550+2K 50" 4 1⁄2" 1540 lbs 10.65 lbs TGK4.579+2K 79" 4 1⁄2" 1540 lbs 14.65 lbs C TG, TGJ & TGK with 2K handle BESSEY® TG Series of malleable cast bar clamps are a trusted workshop staple. Key features include ergonomic composite handles for a secure grip, high-quality profiled steel, an antislip system and a hardened, smooth-running spindle that comes standard with an ACME thread to provide more clamping with less cranking. TG series clamps are made in Germany of European steel and are held to the highest clamping quality standards. D Malleable cast, TC, with flat rail Flat rails are an economical alternative - stable solid flat rail with serration. German quality at an appealing price for industrial application. Comes with ergonomically shaped wood handle, standard pad, and plastic cap. Clamping Capacity Throat Depth Clamping Force Approx. Weight TC4.008 8" 4" 800 lbs 2.85 lbs TC4.512 12" 4 1⁄2" 950 lbs 3.36 lbs TC5.512 12" 5 1⁄2" 1200 lbs 4.85 lbs TC7.016 16" 7" 1200 lbs 5.95 lbs TGRC80S14 31" 5 1⁄2" 1200 lbs 7.55 lbs TGRC100S14 39" 5 1⁄2" 1200 lbs 8.32 lbs TGRC150S14 59" 5 1⁄2" 1200 lbs 11.11 lbs
13 besseytools.com E F G H I J G Plastic replacement caps Fits all TG, TC and CDS clamps 3101392 TGJ2.5 (10/set) 3101394 TG4.0 (10/set) 3101395 TG4.5 (10/set) 3101396 TGK, TG5.5, TG7.0, CDS (10/set) H Standard pad Fits all TG, TC and CDS clamps. Replacement jaw pads, 2 jaw pads/set. 3101180 TGJ2.5 (4 pc) 3101183 TG4.0, TG4.5 (4 pc), GZ Pivot handle 3101188 TG5.5, TG7.0, TGK4.5, CDS (4 pc) I 2K Handle with pad Fits all TG, TC and CDS clamps. 2K replacement handle. 3101179 TGJ (1 pc) 3101182 TG4 (1 pc) 3101186 TG4.5 (1 pc) 3101187 TG5.5, TG7, TGK, CDS (1 pc) E Deep reach, CDS, with flat rail Need some extra reach? The CDS offers a throat depth of up to 20" when you need that extra deep reach. The large flat rail is serrated to prevent slipping. Comes with: Flat rail profile, standard pad, and plastic cap. F Malleable cast, ground clamp Quick action bar clamp that can also double as a grounding clamp for versatile work across applications. The TP-1K comes with a standard pad and a 10.5 mm grounding connection hole in the fixed jaw. Clamping Capacity Throat Depth Clamping Force Approx. Weight CDS24-10WP 24" 10" 1550 lbs 11.05 lbs CDS24-12WP 24" 12" 1550 lbs 13.90 lbs CDS24-20WP 24" 20" 990 lbs 20.15 lbs Clamping Capacity Throat Depth Amps Approx. Weight TP-1K 6" 3 1⁄8" 400 1.65 lbs Woodworking clamps and cast jaw bar clamps BESSEY® quality, durability and strength J BESSEY® accessory bag Heavy duty construction. Multiple pockets for tool storage. Heavy duty zippers. Waterproof base. BTB20
14 1.800.828.1004 1 2 5 4 3 youtube.com/user/BesseyTools A We welcome your feedback, and are happy to assist you with your questions. Please call us toll free: IBeam clamps IBeam Heavy duty steel bar clamps Clamping Capacity Throat Depth Jaw Width Clamping Force Pieces Shipped Approx. Weight IBEAM24 24" 2" 1 3⁄4" 7000 lbs 2 8.32 lbs IBEAM30 30" 2" 1 3⁄4" 7000 lbs 2 9.07 lbs IBEAM36 36" 2" 1 3⁄4" 7000 lbs 2 9.80 lbs IBEAM48 48" 2" 1 3⁄4" 7000 lbs 2 11.25 lbs IBEAM60 60" 2" 1 3⁄4" 7000 lbs 2 12.75 lbs IBEAM72 72" 2" 1 3⁄4" 7000 lbs 2 14.20 lbs IBEAM84 84" 2" 1 3⁄4" 7000 lbs 2 15.70 lbs IBEAM96 96" 2" 1 3⁄4" 7000 lbs 2 17.20 lbs A IBeam steel bar clamp The IBeam rail’s hourglass profile contributes to the clamp's ability to resist flex over a greater clamping span. B BESSEY® IBeam clamp service parts 203715 Handle, spindle, jaw 203722 Clutch assembly Please reference our YouTube videos showing BESSEY® products in action. Search our video database at Check out IBeam in action! Designed to meet the demanding needs of industrial workloads, IBeam is very stiff and much better at resisting bend or twist over a long distance than other clamps. For powerful clamping of all types, where strength and straightness over a distance are crucial. BESSEY® IBeam clamps are ideal for high-demand industrial and institutional woodworking. Available in lengths from 24" to 96". 1 Tough ductile castings Powder coated 2 Nickel plated rail Resists corrosion 3 5 strong, hardened steel clutch plates To aid with gripping the bar stock 4 Crank handle Tremendous strength & long term durability 5 ACME threaded screws With 9⁄ 16" spindle diameter
15 besseytools.com A B 4 2 3 1 NEW NOUVEAU Bar clamps for industrial application Pivot handle clamps delivers extra flexibility from the already uncompromising all steel bar clamp offering from BESSEY®. The 2K ergonomic handle can be swiveled 90° for extra tightening and rotated 360° to access tight work areas. 1 Composite swivel handle Less user effort is required as the 2-component handle can be swiveled 90° for additional leverage and tightening. The ability to rotate the handle 360° makes accessing challenging spaces easier. 2 Hardened spindle Heat-treated, high carbon Acme threaded spindle manufactured for high load capacity, durability and spatter resistance. 3 Drop forged sliding arm U-shaped sliding arm transfers clamping force evenly across the surface of the forged piece improving power transmission and stability for a longer lasting tool. 4 Patented rail profile For greater stability, enhanced clamping and 20% more clamping force per spindle turn for quicker set-up times. Specialty all-steel clamps A Pivot handle clamp, GZ Premium all-steel clamp with composite swivel handle. Clamp in areas where access is challenging, by folding the handle 90° or rotating it 360°. B Step-over clamps, J series The J Series clamps are a total lifesaver in the workshop! Not everything in the shop is flat and this clamp offers a solution to clear obstructions and maintain clamping pressure. NOTE: J18-8 comes with a standard pad and T-Bar 2400J-12 comes with BESSEY MorPad, T-Bar and ergonomic grip 4800J-20 is offered with BESSEY MorPad and T-Bar Clamping Capacity Throat Depth Clamping Force Rail Step-Over Up to Approx. Weight J18-8 10" 4 3⁄4" 880 lbs 2 1⁄4" 3.20 lbs 2400J-12 12" 5 1⁄2" 2660 lbs 4" 8.00 lbs 4800J-20 20" 7" 4880 lbs 6" 17.35 lbs Clamping Capacity Throat Depth Clamping Force Approx. Weight GZ25PH 10" 4 3⁄4" 1100 lbs 3.12 GZ30-12PH 12" 4 3⁄4" 1100 lbs 3.30 GZ40-12PH 16" 4 3⁄4" 1100 lbs 3.72 GZ50-12PH 20" 4 3⁄4" 1100 lbs 3.98 GZ60-12PH 24" 4 3⁄4" 1100 lbs 4.38 3101958 Replacement handle (handle, pad, cap) NEW
16 1.800.828.1004 D C F E CLSSHOE We welcome your feedback, and are happy to assist you with your questions. Please call us toll free: F OMEGA bend clamps, RSC series Thanks to the patented OMEGA bend this clamp maintains its positive clamping pressure longer under heavy vibration than a conventional clamp. It is durable, lightweight and easy to use. Clamping Capacity Throat Depth Clamping Force Approx. Weight RSC-8 8" 4" 770 lbs 1.90 lbs RSC-12 12" 5 1⁄2" 1100 lbs 4.05 lbs RSC-18 18" 4 3⁄4" 1100 lbs 4.90 lbs RSC-24 24" 4 3⁄4" 1100 lbs 5.40 lbs E Multi-Purpose KombiKlamp™ The KombiKlamp™ has great features that make it very versatile. It is set up to clamp, spread, hold irregular shaped objects and even comes with an ergonomic grip. Made in Germany, the clamp is set at a price point to make it a serious consideration for the active shop. Clamping Capacity Throat Depth Clamping Force Approx. Weight CL24 24" 4 3⁄4" 1775 lbs 7.10 lbs CLSSHOE 0.75 lbs 3101590 Replacement arm Clamping Capacity Throat Depth Clamping Force Approx. Weight SG30VAD *12" 4 3⁄4" 2600 lbs 6.44 lbs * 11 inch capacity with VAD in place. Spreading from 9-20". D Claw clamp, CL A welder’s versatile clamp or spreader. The spindle mechanism is on the back side of the sliding arm so that it is out of the work area. The V-grooved pressure plate is made of high grade cast iron and swivels up to 30°. Jaw reverses to act as a spreader. Clamping Capacity Throat Depth Clamping Force Approx. Weight DT2400-12 12" 8" 1770 lbs 7.50 lbs DT2400-24 24" 8" 1770 lbs 9.60 lbs C Regular duty, deep throat version, DT2400 series This series has an extended throat depth of 8 In for that extra reach that is sometimes needed. Comes with: Standard rail profile, MorPad, ergonomic BESSEY grip.
17 besseytools.com A B 2 3 1 2 3 4 Specialty all-steel clamps Double force variable clamps Double force variable clamps enable the widest range of clamping applications. One can clamp through, over or under with this product offering. Add extra sliding arms to the standard clamp or, choose completely different sliding arms to create a semi-custom clamp. Available in a choice of lengths or strengths to make a clamp or spreader that suits your particular needs. BESSEY® offers two different rail stock profiles as well as a choice of rail lengths, handle styles and accessories. Double force clamps allow tremendously versatility. B Rails for Sliding Arms Create your own custom clamp by first choosing a rail style and length, then adding the desired clamp surfaces (see C and D). n Cold drawn and galvanised n E nd fastenings – on both ends – can be loosened without tools for rapid changeover Suitable for Profile Size Length Approx. Weight 3101731 SLV 1 1⁄16" x 1⁄2" 47" 6.28 lbs 3101732 SLV 1 1⁄16" x 1⁄2" 67" 8.92 lbs 3101733 SLV 1 1⁄16" x 1⁄2" 87" 11.57 lbs 3101612 GSV 1 3⁄16" x 5⁄8" 130" 23.00 lbs A Double force all-steel clamps – Complete Set Options n Tipping is prevented through central positioning on the workpiece n L ong service life thanks to special heat resistant pressure plate with sintered steel insert, can be tilted by up to 35° n Clamp can be fed through an opening in the workpiece/component Suitable for Profile Size Clamping Capacity Throat Depth Clamping Force Approx. Weight SLV40M SLV 1 1⁄16" x 1⁄2" 16" 4 3⁄4" 1,450 lbs 6.85 lbs SLV100M SLV 1 1⁄16" x 1⁄2" 39 1⁄2" 4 3⁄4" 1,450 lbs 10.50 lbs SLV150M SLV 1 1⁄16" x 1⁄2" 60" 4 3⁄4" 1,450 lbs 13.13 lbs SLV200M SLV 1 1⁄16" x 1⁄2" 79" 4 3⁄4" 1,450 lbs 15.73 lbs GSV300M GSV 1 3⁄16" x 5⁄8" 118" 5 1⁄2" 2,000 lbs 28.60 lbs
18 1.800.828.1004 A E F G C SLV100M SLV150M SLV200M 3101731 3101732 3101733 3101426 3101337 3101338 D GSV300M 3101329 3101330 3101331 3101612 We welcome your feedback, and are happy to assist you with your questions. Please call us toll free: C Complete sliding arm for SLV sizes n Three different grip variants/designs with different throats depths n Suitable for all SLV size rails with 27 mm x 13 mm rail D Complete sliding arm for GSV sizes n One arm design with three throat depths n Suitable for GSV size rails with rail profile 30 mm x 15 mm n T-Bar includes high-performance pressure plate with sintered steel insert E MorPads 3100736 Smooth face (standard) - SLV or GSV Series 3101192 Rough face - SLV or GSV Series 3101193 V Groove - SLV or GSV Series F Complete spindle assembly 3100398 SLV Spindle (.700" Dia.) 3100399 GSV Spindle (.775" Dia.) 3101782 End fastener set, SLV / GSV rail G Variable angle device VAD Fits SLV and GSV Description Throat Depth Approx. Weight 3101426 Woodenhandle 4 3⁄4" 1.60 lbs 3101337 Lever handle 4 3⁄4" 2.40 lbs 3101338 T-Bar 4 3⁄4" 1.80 lbs Throat Depth Approx. Weight 3101329 4 3⁄4" 2.50 lbs 3101330 5 1⁄2" 2.70 lbs 3101331 7 1⁄2" 3.10 lbs 1 End fastenings can be loosened without tools Both ends can be loosened without tools enabling rapid changeover of the sliding arms for spreading tasks. Replace the sliding arms or add additional sliding arms easily. 2 Interchangeable sliding arms Made from forged tempered steel the sliding arms offer a high level of security as the linear transfer of forces can withstand large loads. Replace with other sliding arm variants to suit the application, or supplement with others. 3 BESSEY® heavy duty MorPad Heavy duty MorPad is designed to reduce friction at the point of contact; which can lower applied clamping force. Longer service life due to the heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°. 4 Tempered spindle Sturdy Acme spindle is wear-resistant, considerably increasing its durability.
19 besseytools.com A B 1 2 3 4 5 Lever clamps Rapid-Action lever clamps 1800L12: Arm folds to stay out of your way! Secure vibration-resistant clamping with a rapid action ratchet mechanism. Position and reposition clamps quickly and securely. 1 Patented rail profile, LC series The patented rail profile offers greater stability, enhanced clamping force and 20% more clamping force for quicker set-up times. 2 Secure ratchet mechanism Ratchet mechanism ensures rapid, vibrationresistant clamping. The hardened cam at the end of the lever ensures a long service life. Trigger protection means fewer pinched fingers. 3 Durable Torsion-resistant, fixed jaw and pressure plate are produced and tempered in one piece for maximum tensile strength and sturdiness. 4 Forged sliding arm Forged sliding-arm is made from tempered, dropforged steel for long service life. 5 Extremely sturdy handle Ergonomically shaped powder-coated clamping lever and plastic-coated release for comfort and power. A All-steel lever bar clamps Quick – up to 5 times faster than regular clamps! Secure, unaffected by vibrations. Strong – high clamping force. Non-slip trigger release. Patented profiled rail. B classiX® GSH all-steel lever bar clamps Quick – up to 5 times faster than regular clamps! Secure, unaffected by vibrations. Strong – high clamping force. Non-slip trigger release. Classic profiled rail. Clamping Capacity Throat Depth Clamping Force Approx. Weight LC4 4" 2 3⁄8" 400 lbs 1.10 lbs LC8 8" 4" 660 lbs 2.45 lbs LC12 12" 5 1⁄2" 1200 lbs 4.95 lbs LC20 20" 4 3⁄4" 1200 lbs 5.80 lbs LC31 31" 4 3⁄4" 1200 lbs 6.95 lbs 1800L12 10" 5 1⁄2" 1800 lbs 7.35 lbs Clamping Capacity Throat Depth Clamping Force Approx. Weight GSH12 4" 2 3⁄8" 400 lbs 1.10 lbs GSH20 8" 4" 600 lbs 2.50 lbs GSH30 12" 5 1⁄2" 1110 lbs 5.00 lbs GSH50 20" 4 3⁄4" 1110 lbs 6.25 lbs
20 1.800.828.1004 A B 1 2 3 4 youtube.com/user/BesseyTools A A We welcome your feedback, and are happy to assist you with your questions. Please call us toll free: Light duty lever clamp Please reference our YouTube videos showing BESSEY® products in action. Search our video database at Check out KliKlamp® in action! This lightweight lever clamp creates up to 260 lbs. of clamping force, quickly. The positive locking ratchet action will not loosen due to vibration. It's surface-coated fixed and sliding arms are made from sturdy magnesium which makes it lightweight and strong. The fixed arm with v-grooves holds round, pointed and angular components firmly in place. Ergonomically shaped clamping arm is made from fiberglass-reinforced polyamide. This clamp is quick, easy, and gentle. 1 Sturdy magnesium Magnesium jaws are extremely light and strong. 2 Multi-stage ratchet mechanism Ratchet mechanism is vibration-resistant, making it great for use with power tools. 3 Secure hold The fixed arm with crossed v-grooves holds round, pointed or angular components firmly in place. 4 Ergonomically shaped clamping arm Durable, fiberglass-reinforced, polyamide clamping arm ergonomically designed for comfort and power. A KliKlamp® light duty lever clamp Light as a feather – tough as nails; it’s perfect for your workshop. Clamping force up to 260 lbs. Sturdy fixed and sliding arms made from lightweight magnesium. Quick, and vibration resistant, clamping. Clamping Capacity Throat Depth Clamping Force Approx.Weight KLI3.004 4" 3" 260 lbs 0.53 lbs KLI3.008 8" 3" 260 lbs 0.67 lbs KLI3.012 12" 3" 260 lbs 0.83 lbs KLI3.016 16" 3" 260 lbs 0.97 lbs KliKlamp®
